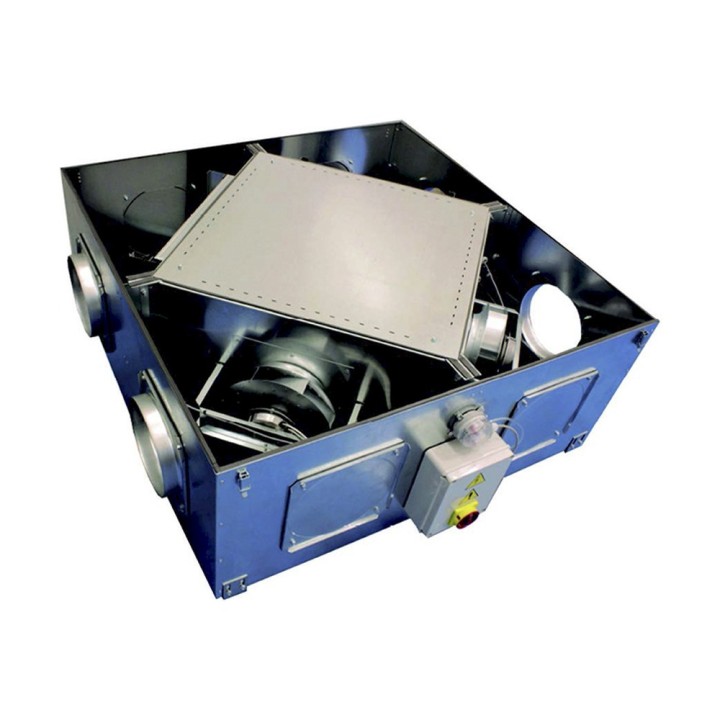

Heat recovery units RCE-EC

*Airflow with 150 Pa pressure drop This series of heat recovery units with EC motors, bypass, an F7 filter on each intake and an F8 filter on the supply, is suitable for heat recovery in public environments such as bars, meeting rooms, offices and small and medium-sized premises. The entire range complies with Directive 1253/2014 ECODESIGN 2018, so the efficiency of all models is higher than 73%. They also include digital control, which allows the connection of a CO2 sensor and control via ModBus RS485. The TECNA RCE range of heat recovery units designed to work horizontally: RCE-EC/H allows installation in false ceilings with easy access to the filters, with the access doors on the underside. Control The TECNA-RCE heat recovery units include a wall control with which the unit can be managed in two operating modes: Manual and Automatic, giving control over the fans and bypass. It allows the connection of a CO2 sensor which automatically regulates the fans according to the ppm of CO2 in the room. It is also equipped with an RS485 port with the possibility of managing up to 32 units with a single control, or any number using a PC or via MODBUS communication. In addition, it can include control of a water coil and an electric coil. Wall control with 3.5-inch LCD screen included. Single-phase. More information For other configurations or positions, please consult. For other filters, please consult. ACCESSORIES AND SPARE PARTS
