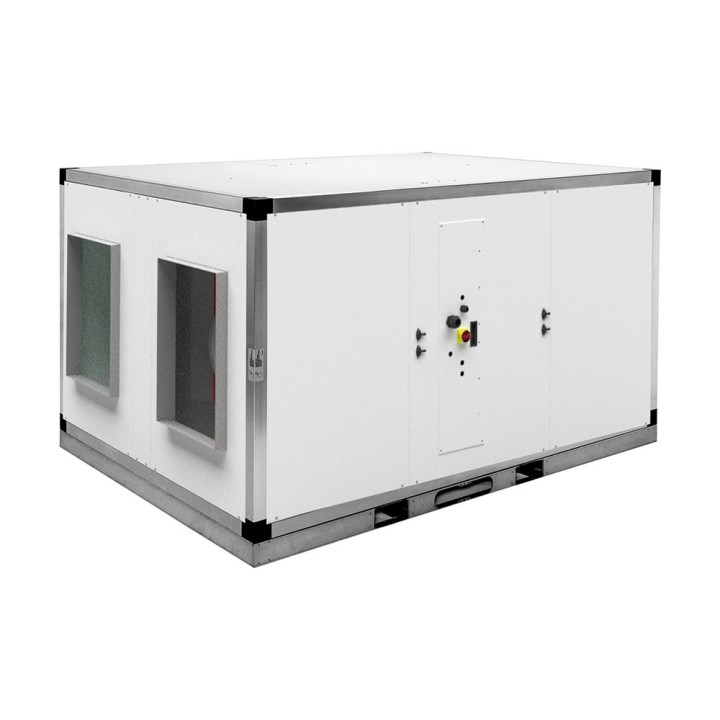

Heat recovery units CADB/T-HE BASIC

CADB/T-HE BASIC HORIZONTAL D models: without additional heating. *1 Wet efficiency referred to nominal airflow, outdoor conditions (-5ºC 80% RH) and indoor conditions (20ºC/50%RH). *2 CADT-HE 45 airflow referred to 450Pa. Same as the CADB/T-HE ECOWATT range but with integrated control and fewer options. As it is not available with additional post-heating coils and does not allow control of external heating or cooling coils. Filters - F7: Low pressure drop F7 filters for supply air. - M5: M5 filters for extract air. - Possibility of fitting a second filter inside the unit (supplied as an accessory). Control Includes a comprehensive operating control, integrated in the unit and wired to all components (fans, by-pass, filter clogging detectors, temperature sensors, etc.). Allows manual or automatic control of the fans. There are two possible automatic fan control modes: VAV - Variable air volume: The fan speed can be adjusted by means of a 0-10V analogue signal from the included remote control or from a CO2 sensor (accessory). COP - Constant pressure (only available via Modbus): The fan speed is regulated to maintain a constant pressure in the ductwork. A TDP-S pressure sensor is required as an external accessory. This function cannot be activated from the remote control supplied with the unit. More information Vertical models or other configurations. On request.
