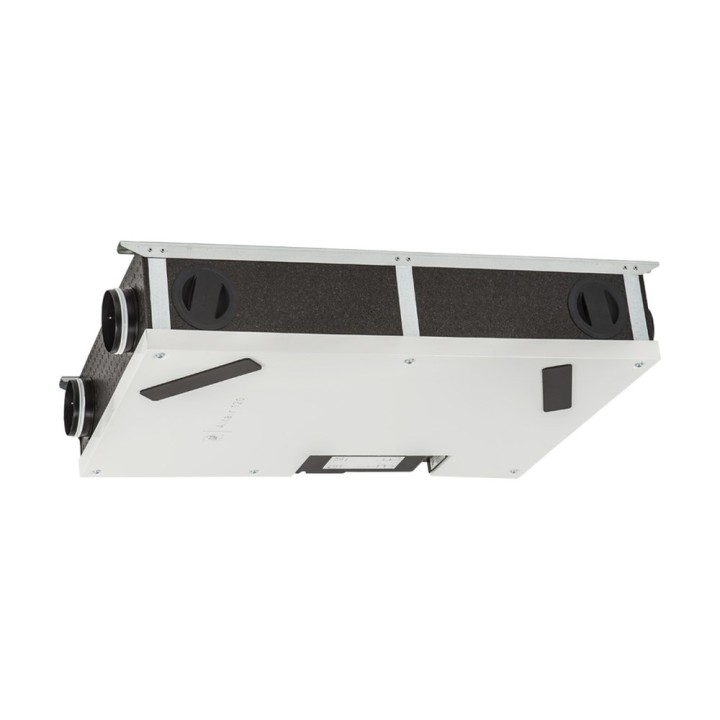

Controlled mechanical ventilation - CMV ALTAIR 120

Dual-flow CMV for single-family homes, with high-efficiency counterflow heat exchanger (up to 88%) and very low-consumption DC EC motor. Its extra-flat design allows easy installation horizontally in false ceilings (ALTAIR 120 H) or vertically on walls (ALTAIR 120 V), especially in technical walls prepared to house concealed cisterns. It has a humidity sensor that allows the extract airflow to be adjusted to the humidity present inside the dwelling. It incorporates supply and extract filters. Includes a remote control that allows the airflow to be modified and manual or automatic (sensor) operation. The use of an LAF 95 silencer is recommended (accessory not included). The ALTAIR unit can communicate with the home automation system via Modbus or other protocols via gateway. By means of the SPCM-1 communications board, the ALTAIR unit communicates with the CONNECTAIR platform, which allows remote control. Features • Counterflow heat exchanger with efficiency up to 88%. • Low-consumption EC motor. • Centrifugal fans with forward-curved blade impeller. • Modbus connection. • EPP casing. • 4 Ø 95 mm spigots. • Supply filter: • G4 (ISO coarse 65%, at 120 m3/h). • Optional M5 (ISO ePM10 50%, at 120 m3/h). • Extract filter G4 (ISO coarse 65%, at 120 m3/h).
