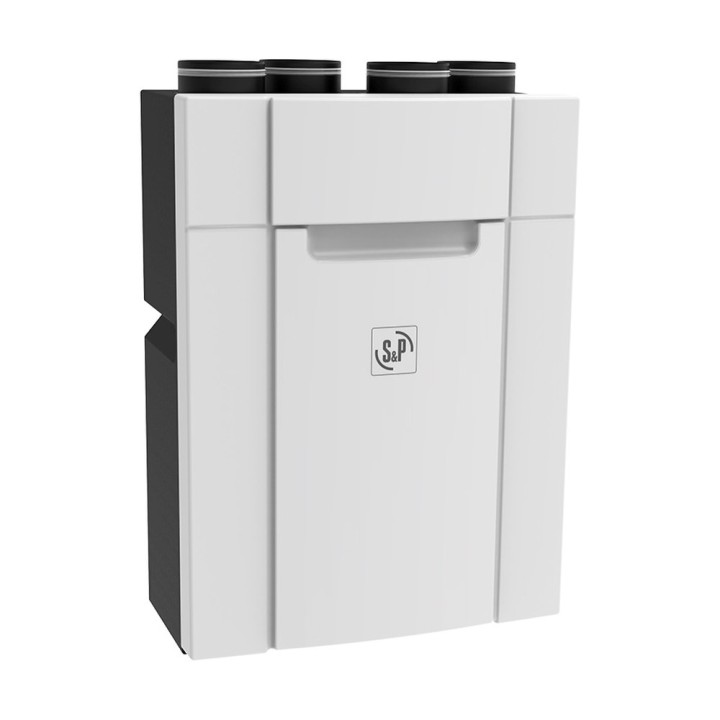

Controlled mechanical ventilation - CMV DOMEO 210

Dual-flow CMV for single-family homes, with high-efficiency counterflow heat exchanger (up to 92%) and very low-consumption DC EC motor. The DOMEO unit can communicate with the home automation system via Modbus or other protocols via gateway. It also allows control of external electric pre-heating and post-heating coils. To optimise energy consumption and air quality, it can be connected to a CO2, humidity or other sensor. Incorporates a 100% automatic by-pass, and supply and extract filters. Includes a remote control that allows adjustment of the boost (on RD), the by-pass and the dirty filter reset. By means of the SPCM-WB communications board, the DOMEO 210 FL 3V EU unit communicates with the CONNECTAIR platform, which allows remote control. Versions: • DOMEO 210 FL 3V EU: Wired remote control, 3 configurable speeds. • DOMEO 210 RD: Radio-frequency remote control. Constant airflow motor. Features • Counterflow heat exchanger with efficiency up to 92%. • Low-consumption EC motor. • Centrifugal fans with backward-curved blade impeller. • Modbus connection. • EPP casing. • 4 Ø 125 mm spigots. • 100% automatic by-pass. • Manual boost mode (RD models). • Supply filter: - F7 (ISO ePM1 65%, at 210 m3/h). - Optional M5 (ISO ePM10 50%, at 210 m3/h). • Extract filter G4 (ISO coarse 65%, at 210 m3/h)
