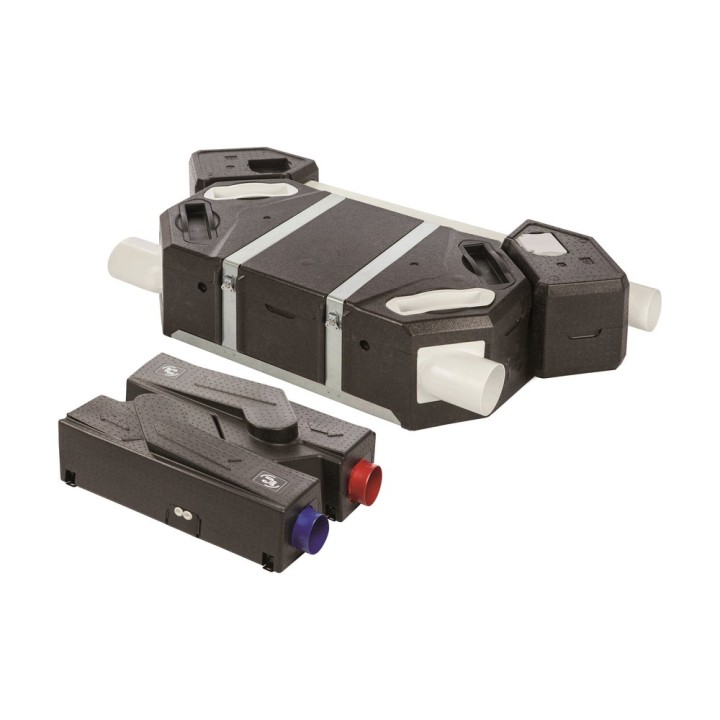

Controlled mechanical ventilation - CMV FLEXEO 3V

Assembly consisting of a high-efficiency (up to 94%) static heat recovery unit with by-pass, and 2 fans (one supply and one extract). All elements of the assembly are low-profile (300 mm) and lightweight, which allows their installation in false ceilings, both in single-family homes and in flats in multi-dwelling buildings. The independent configuration of the different modules (heat exchanger with by-pass, supply fan and extract fan) allows total flexibility of location and installation. Equipped with supply filter and extract filter. They have a remote control that allows adjustment of the boost function, the by-pass and the dirty filter alarm. Incorporates a 100% by-pass, manually or automatically operated, whose design maintains the low profile of the heat recovery unit so that it does not prevent its perfect installation in false ceilings. Versions • FLEXEO BP FL 3V: Wired remote control. • FLEXEO BP RD 3V: Radio-frequency remote control. Features • Counterflow heat exchanger with efficiency up to 94%. • EPP casing. • Nozzles pivoting 90º. • 2 fan modules (supply and extract). • 100% manual or automatic by-pass. • 3 speeds. • Supply filter: - M5 (ISO ePM10 50%, at 210 m3/h). - Optional F7 (ISO ePM1 50%, at 210 m3/h). • Extract filter G4 (ISO coarse 60%, at 210 m3/h) • Wall or ceiling installation kit. • Easy access to the heat exchanger. • MODBUS connection.
