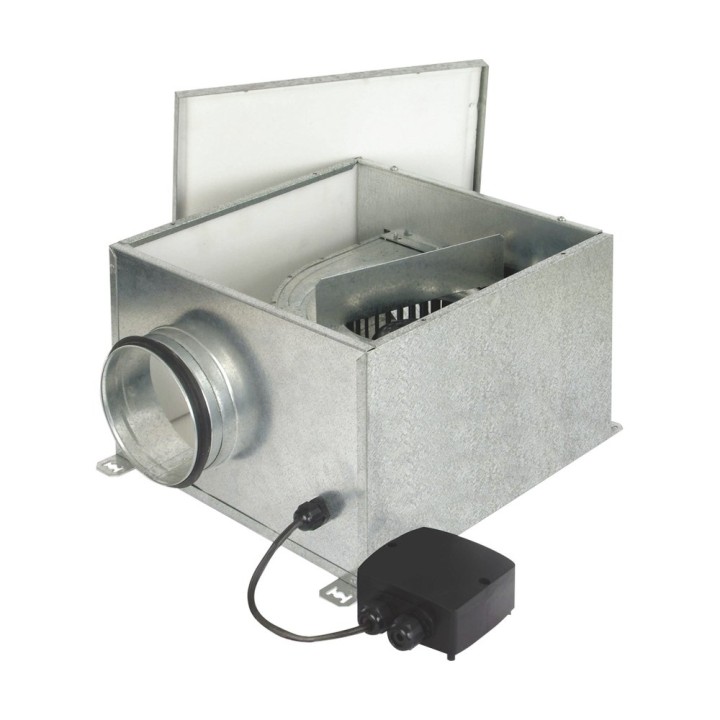

Ventilation boxes CVB SLIMBOX
Soler & Palau (S&P)

Ventilation boxes CVB SLIMBOX

Código 706343 Ref. fabricante 5137282900

Airtight, low-profile, low-noise ventilation boxes, made of galvanised sheet steel, acoustic insulation (M1) of melamine foam 7 mm thick, airtight latch, single-inlet (1) centrifugal fan with forward-curved blades and…

Airflow

Available references

Set the quantity of each reference and add them to the cart at once.

4 referencias
Referencia Ref. fabricante ModeloVeloc. (r.p.m.)Caudal máximo (m3/h)Pot. abs. máxima (W) Stock Precio
706343 330 m³/h 5137282900 Modelo: CVB-350/125Veloc. (r.p.m.): 1700Caudal máximo (m3/h): 330Pot. abs. máxima (W): 92 56 uds. 5137282900 CVB-350/125170033092 56 uds.
706344 680 m³/h 5137283700 Modelo: CVB-600/150-160Veloc. (r.p.m.): 2310Caudal máximo (m3/h): 680Pot. abs. máxima (W): 257 15 uds. 5137283700 CVB-600/150-1602310680257 15 uds.
706345 840 m³/h 5137284500 Modelo: CVB-900/200Veloc. (r.p.m.): 1100Caudal máximo (m3/h): 840Pot. abs. máxima (W): 175 16 uds. 5137284500 CVB-900/2001100840175 16 uds.
706346 1.290 m³/h 5137285200 Modelo: CVB-1100/250Veloc. (r.p.m.): 1720Caudal máximo (m3/h): 1.290Pot. abs. máxima (W): 392 19 uds. 5137285200 CVB-1100/25017201.290392 19 uds.

Airtight, low-profile, low-noise ventilation boxes, made of galvanised sheet steel, acoustic insulation (M1) of melamine foam 7 mm thick, airtight latch, single-inlet (1) centrifugal fan with forward-curved blades and single-phase motor IP44, Class B, external rotor type with thermal protector and remote terminal box IP44. Operating temperature from -20ºC to +40ºC. More information Supplied with a removable hermetically sealed cover, which allows them to be installed outdoors without the need for a weather cover. On request, models with casing protected by anti-corrosion epoxy paint. ** Sound pressure level measured at 1,5 m in free field at the midpoint of the curve. Access Easyvent and calculate the required characteristics for your ventilation box

  • Brand
  • Reference
    706343
  • MPN
    5137282900

  • Series
    CVB SLIMBOX
