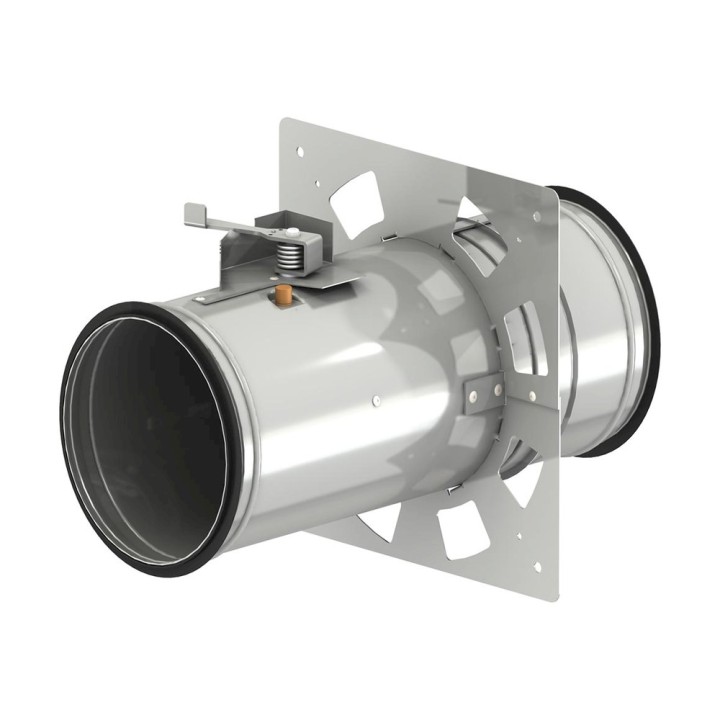

Circular fire damper CR120 images
The CR120 fire damper is designed to be installed in small-diameter circular ventilation ducts (up to 315mm), through a wall to prevent the spread of fire between two different zones.
Available references
Set the quantity of each reference and add them to the cart at once.
| Referencia | Diámetro | Stock | Precio | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 780711 200 mm | 200 | 9 uds. | Sign in to see your price | ||||||||||||||||
| 780712 250 mm | 250 | 13 uds. | Sign in to see your price | ||||||||||||||||
| 780713 315 mm | 315 | 5 uds. | Sign in to see your price | ||||||||||||||||
| Ninguna referencia coincide con el filtro. | |||||||||||||||||||
The CR120 fire damper is designed to be installed in small-diameter circular ventilation ducts (up to 315mm), through a wall to prevent the spread of fire between two different zones. – Easy installation. – Optimised free air passage area and minimum pressure drop. – Casing airtightness class C according to EN1751. – The damper casing is made of sheet steel and the blade of asbestos-free refractory material, with fire resistance EI120. – Intumescent sealing gasket. In the event of fire it seals the blade to the damper body. The standard model MFUSP+FDCU includes: – Release mechanism by 72ºC fuse or by lever operation (reset with 10 mm Allen key). – Limit switch. Several versions with different motorised operating mechanisms, please enquire.
-
Brand
-
Reference780711
-
SeriesCircular fire damper CR120
