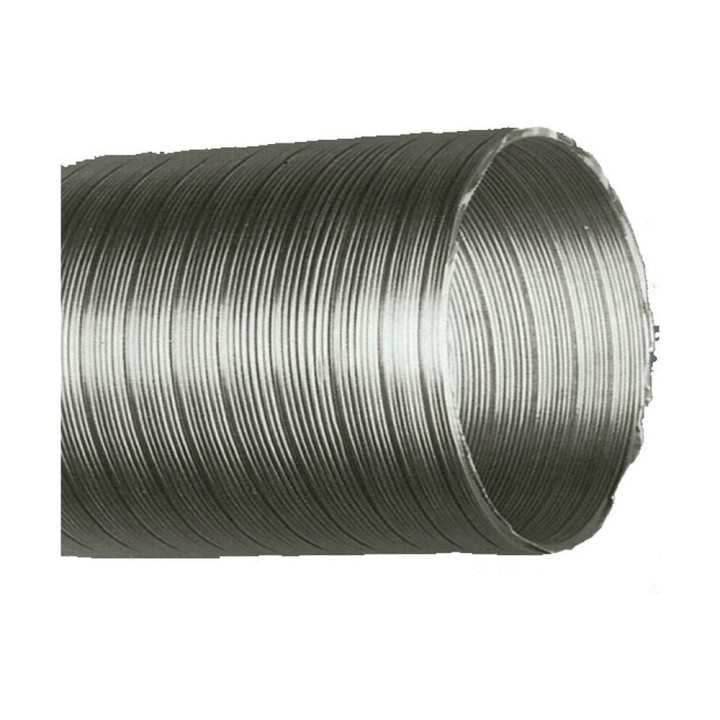

Circular flexible duct
Pecomark

Circular flexible duct

Código 720062

Made of aluminium.

Diameter

Available references

Set the quantity of each reference and add them to the cart at once.

17 referencias
Referencia Ø Tubo en mm Stock Precio
720062 100 mm Ø Tubo en mm: 100 224 uds. 100 224 uds.
720063 110 mm Ø Tubo en mm: 110 128 uds. 110 128 uds.
720064 120 mm Ø Tubo en mm: 120 28 uds. 120 28 uds.
720400 125 mm Ø Tubo en mm: 125 144 uds. 125 144 uds.
720007 130 mm Ø Tubo en mm: 130 112 uds. 130 112 uds.
720005 140 mm Ø Tubo en mm: 140 40 uds. 140 40 uds.
720065 150 mm Ø Tubo en mm: 150 92 uds. 150 92 uds.
720066 160 mm Ø Tubo en mm: 160 56 uds. 160 56 uds.
720006 180 mm Ø Tubo en mm: 180 192 uds. 180 192 uds.
720067 200 mm Ø Tubo en mm: 200 148 uds. 200 148 uds.
720068 225 mm Ø Tubo en mm: 225 72 uds. 225 72 uds.
720069 250 mm Ø Tubo en mm: 250 64 uds. 250 64 uds.
720070 300 mm Ø Tubo en mm: 300 104 uds. 300 104 uds.
720071 350 mm Ø Tubo en mm: 350 60 uds. 350 60 uds.
720072 400 mm Ø Tubo en mm: 400 47 uds. 400 47 uds.
720073 450 mm Ø Tubo en mm: 450 30 uds. 450 30 uds.
720074 500 mm Ø Tubo en mm: 500 35 uds. 500 35 uds.

Made of aluminium. Applications: Flue gas outlet for wall-mounted gas boilers (except condensing boilers), negative-pressure water heaters, kitchen hoods, tumble dryers, controlled mechanical ventilation, air conditioning of rooms with air conditioners or heat pumps, dust extraction, etc. Technical data: Available diameters: 80 to 500 mm; Maximum tested pressures: +3.100 Pa / -1.600 Pa; Airtightness class C; Bending radius R= 0,7 × Ø compressed duct / R= 1 × Ø extended duct; Operating temperature up to 200ºC; Bending capacity (maximum deformation): 25 mm; Duct breaking strength: 255 N compressed / 106 N extended; Complies with standard UNE-EN 13180:2003; Reaction to fire: M-0. Supplied in full boxes. • From 80 to 225: ducts are supplied compressed to 1 m and extendable up to 5 m. • From 250 to 350 mm: ducts are supplied compressed to 1,25 m and extendable up to 5 m. • From 400 to 500 mm: ducts are supplied compressed to 1,5 m and extendable up to 5 m. Galvanised sheet with a thickness of 0,5 mm

  • Brand
  • Reference
    720062

  • Series
    Circular flexible duct
