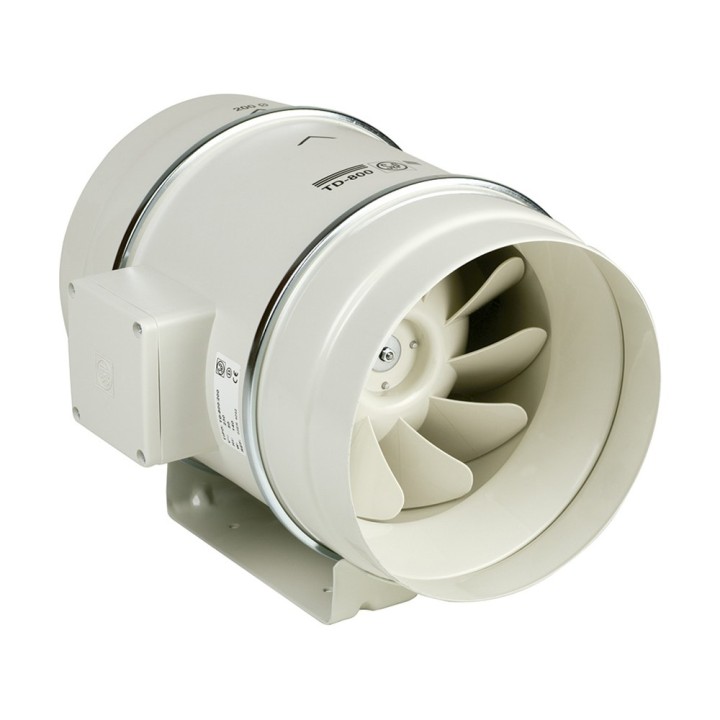

Domestic ventilation TD-MIXVENT
Soler & Palau (S&P)

Domestic ventilation TD-MIXVENT

Código 711078 Ref. fabricante 5211320600

Low-profile mixed-flow fans.

Model

Available references

Set the quantity of each reference and add them to the cart at once.

10 referencias
Referencia Ref. fabricante TD-MIXVENTVeloc. (r.p.m.)Ø Conduc. (mm)Temp. de trabajo (°C) Stock Precio
711078 711078 5211320600 TD-MIXVENT: TD-250/100Veloc. (r.p.m.): 2140Ø Conduc. (mm): 100Temp. de trabajo (°C): -20/40 32 uds. 5211320600 TD-250/1002140100-20/40 32 uds.
711079 711079 5211306500 TD-MIXVENT: TD-350/125Veloc. (r.p.m.): 2050Ø Conduc. (mm): 125Temp. de trabajo (°C): -20/40 31 uds. 5211306500 TD-350/1252050125-20/40 31 uds.
711080 711080 5211301100 TD-MIXVENT: TD-500/150 3VVeloc. (r.p.m.): 2590Ø Conduc. (mm): 150Temp. de trabajo (°C): -20/60 28 uds. 5211301100 TD-500/150 3V2590150-20/60 28 uds.
711081 711081 5211301300 TD-MIXVENT: TD-500/160 3VVeloc. (r.p.m.): 2590Ø Conduc. (mm): 160Temp. de trabajo (°C): -20/60 29 uds. 5211301300 TD-500/160 3V2590160-20/60 29 uds.
711200 711200 5211304500 TD-MIXVENT: TD-800/200N 3VVeloc. (r.p.m.): 2190Ø Conduc. (mm): 200Temp. de trabajo (°C): -20/60 41 uds. 5211304500 TD-800/200N 3V2190200-20/60 41 uds.
711082 711082 5211304900 TD-MIXVENT: TD-800/200 3VVeloc. (r.p.m.): 2480Ø Conduc. (mm): 200Temp. de trabajo (°C): -20/60 37 uds. 5211304900 TD-800/200 3V2480200-20/60 37 uds.
711084 711084 5211009000 TD-MIXVENT: TD-1300/250 3VVeloc. (r.p.m.): 2710Ø Conduc. (mm): 250Temp. de trabajo (°C): -20/60 9 uds. 5211009000 TD-1300/250 3V2710250-20/60 9 uds.
711085 711085 5211009100 TD-MIXVENT: TD-2000/315 3VVeloc. (r.p.m.): 2640Ø Conduc. (mm): 315Temp. de trabajo (°C): -20/60 24 uds. 5211009100 TD-2000/315 3V2640315-20/60 24 uds.
711201 711201 5211015200 TD-MIXVENT: TD-4000/355Veloc. (r.p.m.): 1360Ø Conduc. (mm): 355Temp. de trabajo (°C): -40/40 27 uds. 5211015200 TD-4000/3551360355-40/40 27 uds.
711204 711204 5211935000 TD-MIXVENT: TD-6000/400 TRIFVeloc. (r.p.m.): 1400Ø Conduc. (mm): 400Temp. de trabajo (°C): -40/60 46 uds. 5211935000 TD-6000/400 TRIF1400400-40/60 46 uds.

Low-profile mixed-flow fans. The motor body can be removed without touching the ducts. Made of plastic (models 160 to 800) or galvanised sheet steel protected with anti-corrosion epoxy-polyester paint (models 1000 to 6000). Motors Models 160 to 2000: IP44, Class B, with permanently lubricated ball bearings and thermal protector. Supply voltage: Single-phase 230V-50Hz (models 160 to 350). Single-phase 230V-50/60Hz (models 500 to 2000). 2- or 3-speed motors depending on model, also speed-controllable by voltage variation. Models 4000 to 6000: IP54, Class F, with permanently lubricated ball bearings and thermal protector. Supply voltage: Single-phase 230V-50/60Hz Three-phase 400V-50/60Hz (model 4000) or 400V-50Hz (model 6000) Speed-controllable by voltage variation. Three-phase models are speed-controllable by frequency inverter. * Sound pressure level, radiated at 3 metres in free field, with rigid ducts on inlet and outlet.

  • Brand
  • Reference
    711078
  • MPN
    5211320600

  • Series
    TD-MIXVENT
